AC ceiling fan capacitor CBB61

The name :

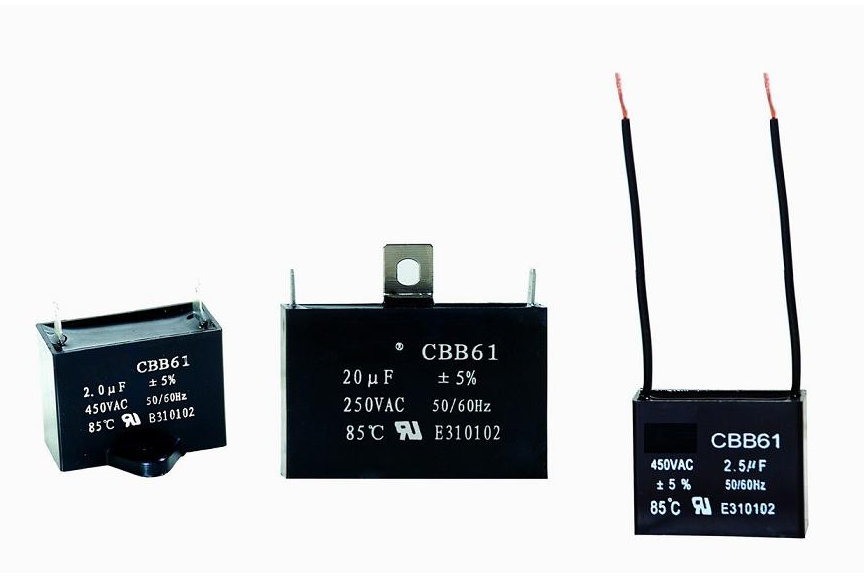

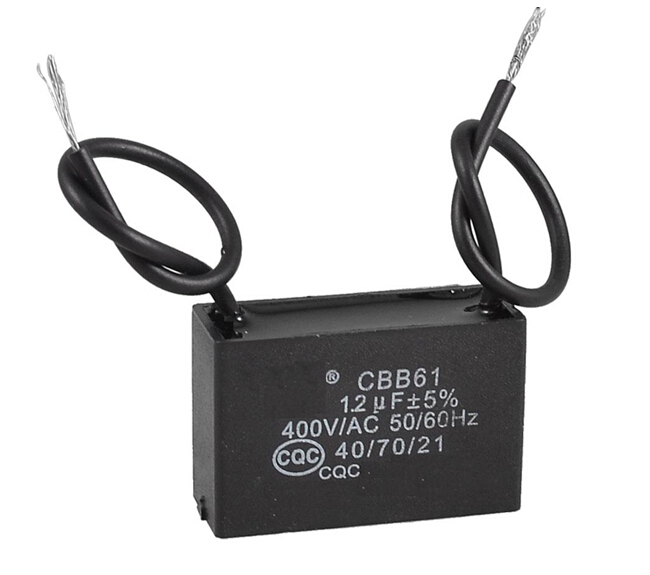

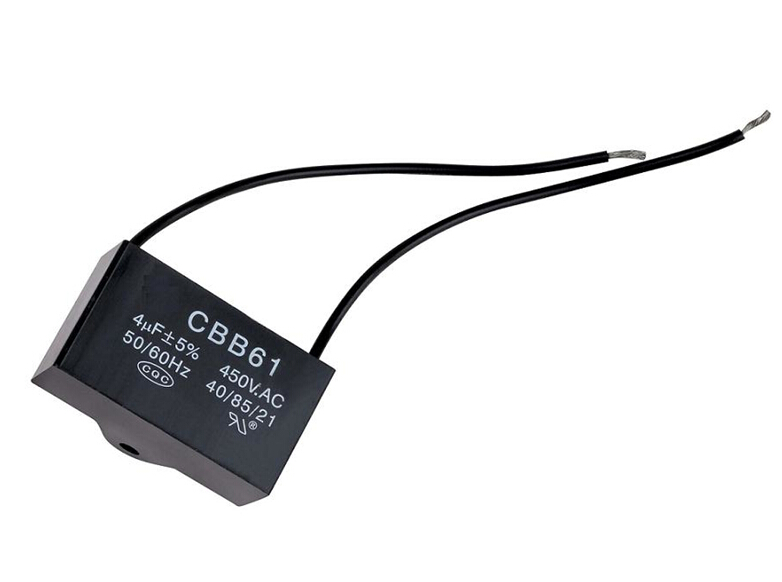

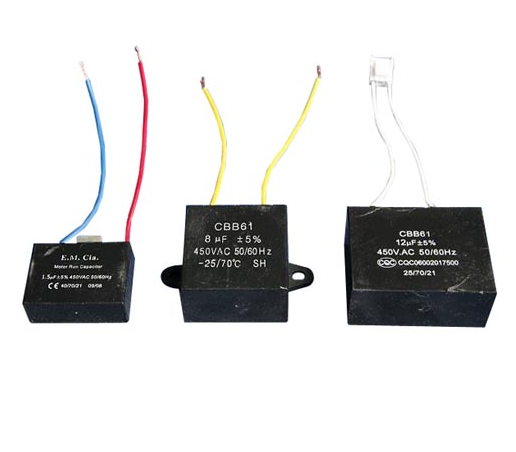

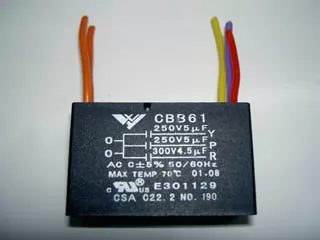

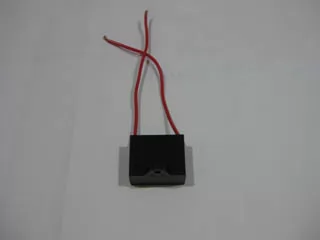

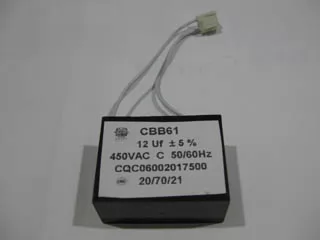

AC ceiling fan capacitor CBB61
Product Description

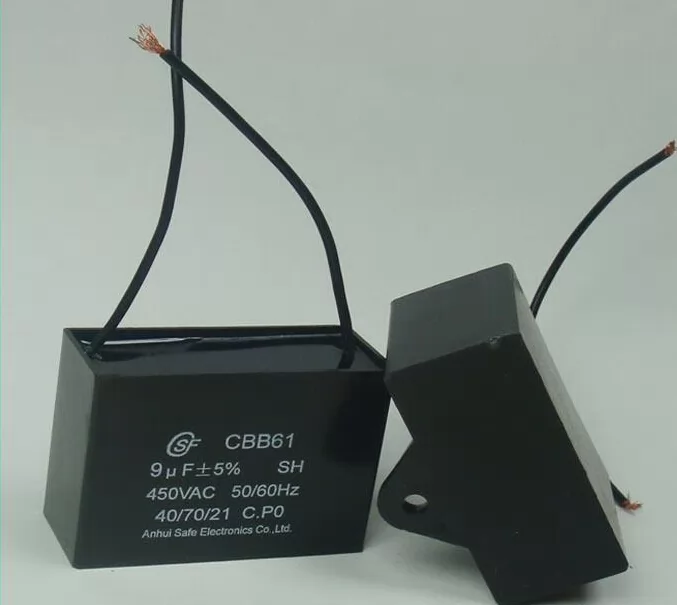

CBB61 ceiling fan capacitor ,Fan run capacitor.To start and run single phase motors in alternating current usage.

It is widely used as the start up and running capacitor that is special for electric appliances such as electric fanners,ventilators and exhaust fanners
Model : NPTC-CBB61

Previous : CBB65 aluminum run capacitor

Feature:

Techinnical Parameters

1.Capacitance range:1 uF~25uF

2.Rated voltage:250~500Vac (50 Hz/60Hz)

3.Capacitance tolerance:±5%,±10%

4.Dissipation factor:≤0.0020(100Hz)

5.Climate category:-25/70/21

6.Testing voltage:T-T:2.0Un,2S non-breakdown

T-C:2000VAC,10s non-breakdown

7.Insulation resistance:T-T Rjc: ≥3000 MΩ:μ F

T-C Rjc: ≥1000 MΩ

8.Between leading-out end and shell: ≥1000 MΩ

9.Tangent of loss angle:tgδ≤0.003(20°C 50/60Hz)
