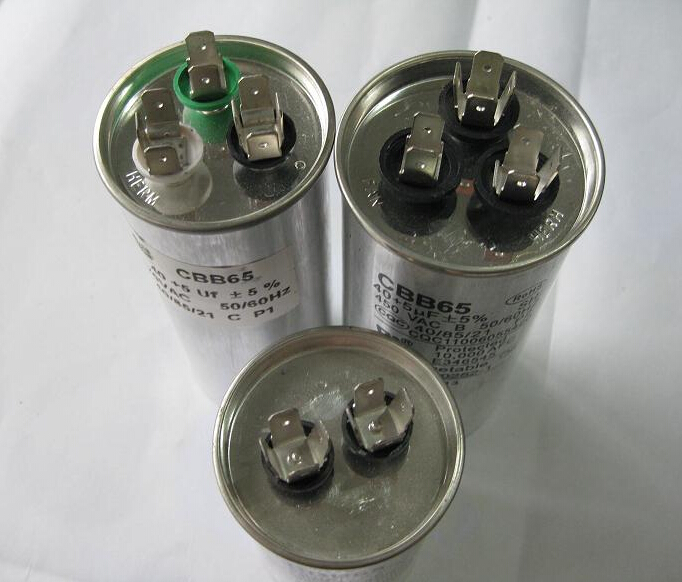

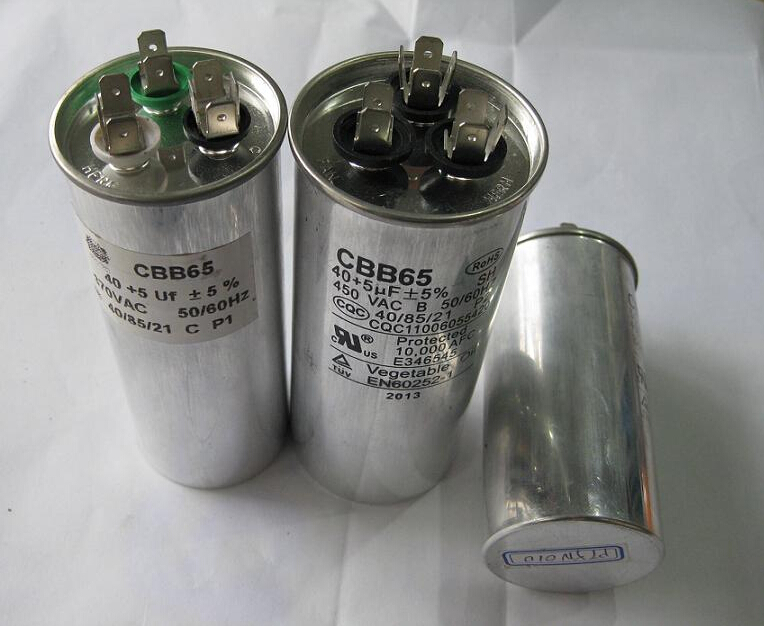

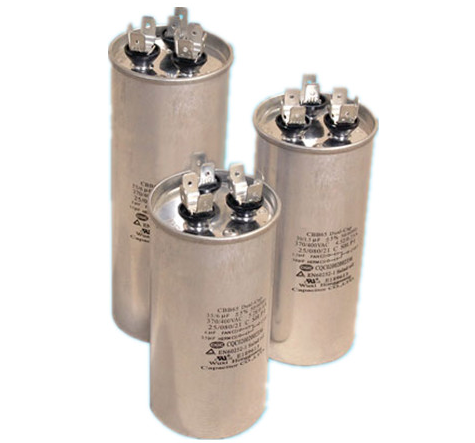

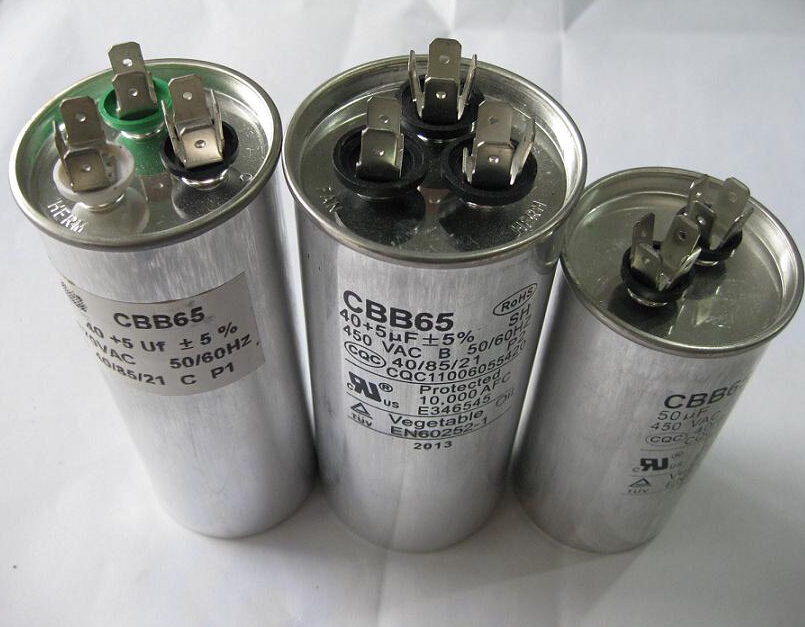

Feature:
1.Made of aluminium body
2.Filled by oil of good sealing
3.Technical features: climate types,40/70/21or40/85/21
4.Capacity deviations,±5%
5.Insulation resistance,≥3000S(MΩ·μF)
6.·Loss tangent,tgδ≤0.002(50Hz~100Hz)
7.Use requirements
·Altitude,≤2000m
·Residual voltage inputs,≤rated voltage10%
Maximum allowable voltage,≤110% rated voltage
·Maximum allowable current,≤130%Times rated current
|
Model |
Microfarad |
Frequency |
Temperature |
Voltage |
Size(Dia.xheight) |
|
NPTC-RARC402 |
2uf |
50/60HZ |
-25°C-70°C |
370V |
40x60mm |
|
NPTC-RARC403 |
3uf |
50/60HZ |
-25°C-70°C |
370V |
40x60mm |
|
NPTC-RARC404 |
4uf |
50/60HZ |
-25°C-70°C |
370V |
40x60mm |
|
NPTC-RARC405 |
5uf |
50/60HZ |
-25°C-70°C |
370V |
40x70mm |
|
NPTC-RARC406 |
6uf |
50/60HZ |
-25°C-70°C |
370V |
40x70mm |
|
NPTC-RARC407 |
7uf |
50/60HZ |
-25°C-70°C |
370V |
40x70mm |
|
NPTC-RARC408 |
7.5uf |
50/60HZ |
-25°C-70°C |
370V |
40x70mm |
|
NPTC-RARC409 |
8uf |
50/60HZ |
-25°C-70°C |
370V |
40x70mm |
|
NPTC-RARC410 |
9uf |
50/60HZ |
-25°C-70°C |
370V |
40x70mm |
|
NPTC-RARC411 |
10uf |
50/60HZ |
-25°C-70°C |
370V |
40x70mm |
|
NPTC-RARC412 |
11uf |
50/60HZ |
-25°C-70°C |
370V |
40x7 |
