Condensers 1

Condenser and Evaporator

  • The name :

    Condensers 1

  • Product Description

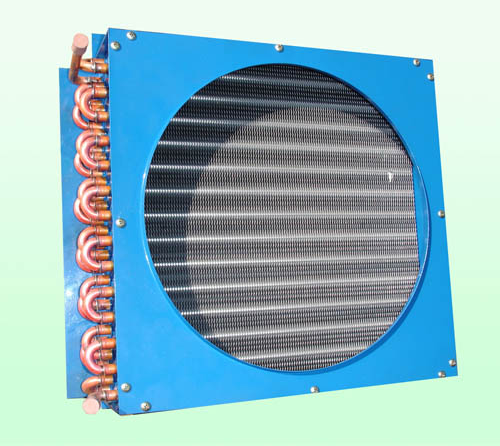

  • Air conditioner condenser,Fin Type Condenser are used for air conditioner ,refrigerator and so on.

  • Model :

Previous : Condensers 2

Feature: in Type Condenser (Condenser)

Specification: 2Rows*10Holes Condenser with fan or without fan

1. Material :copper , aluminum ,galvanized plate

2. Aluminum foil: hydrophilic or bare

3. Fin type: louver fin or flat fin or corrugated fin

4. Copper pipe: diameter 7mm or 9.52mm or 10mm above ,inner screw thread or smooth tube

5. Pitch of fins can be adjusted between 1.8—5.8mm.

6. Pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM

7. Suitable for R134A, R22, R404A, R407C refrigerant and so on

8. Voltage: 220V/1/50HZ and 380V/3/50HZ or other type.

9. Different alternative condensing fans available: shaded pole or outer rotor fan motor.

10.Did gas examination under 3.0Mpa air pressure to ensure the tightness.

11.Condenser type:side-exhausted with single fan, double fan, triple fan and fourfold fan, heat exchange surface is from 2 square meter to 180 square meter top-exhausted with double fan and triple fan, heat exchange surface is from 80 square meter to 600square meter.

12.Widely used in refrigeration industry, cold room and other cooling system.

13. We can supply products as per customized samples or drawing.

14.Producing procedure: tube bending, punching fin, expanding, digressing, drying Welding, leakage test, bending, inspection, packing

15.Note: for further information please contact PartsNet (Condenser Supplier).
