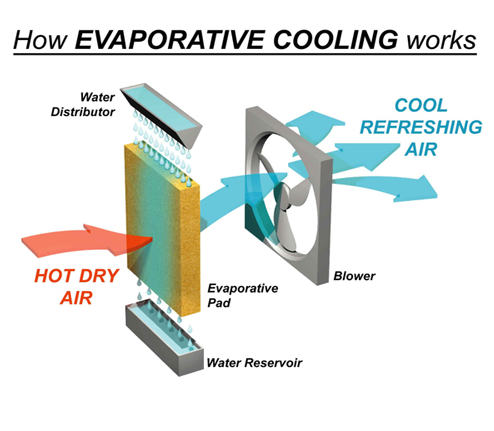

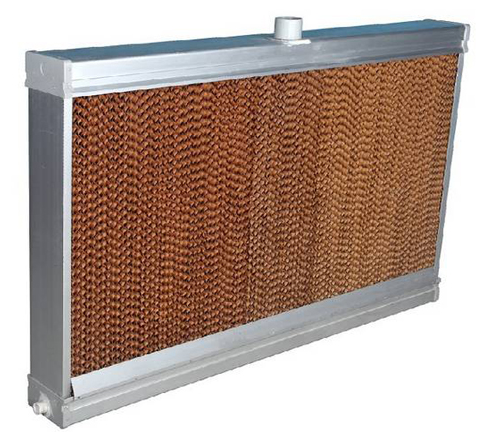

Evaporative Cooling Pad is made of special cellulose paper and highly endosmotic water, with physical flutes having height of wave7mm. These flutes are united each other to make an angle of cut-off 900 and they look like honeycomb structure. This special design yields larger square face in the same volume space, increases possible contact, rub and collision between air and crumpled face of the pad. Membranous water is taken shape and it covers face of the pad. When air goes through the membranous water, evaporative process into air will happen, simultaneously change temperature and humidity of the air flow. So this process is called the temperature-humidity exchange process.
Model:5090, 7090
Size:1500mm×600mm×100mm
1500mm×600mm×150mm
1500mm×600mm×100mm
1800mm×600mm×100mm
1800mm×600mm×150mm
2000mm×600mm×100mm
2000mm×600mm×150mm
