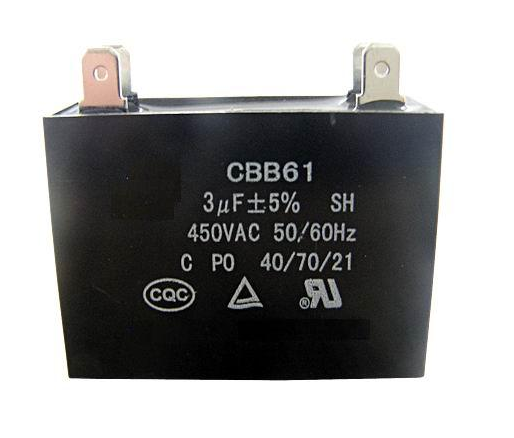

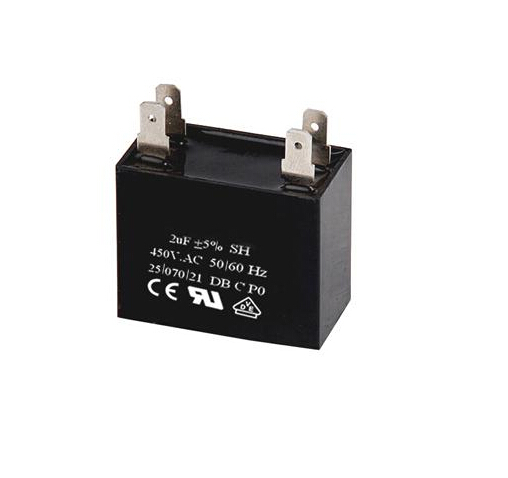

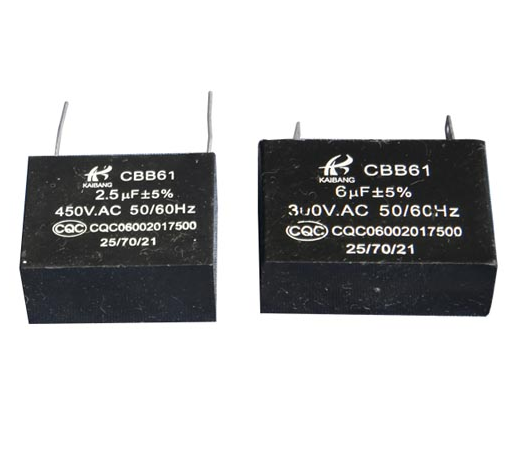

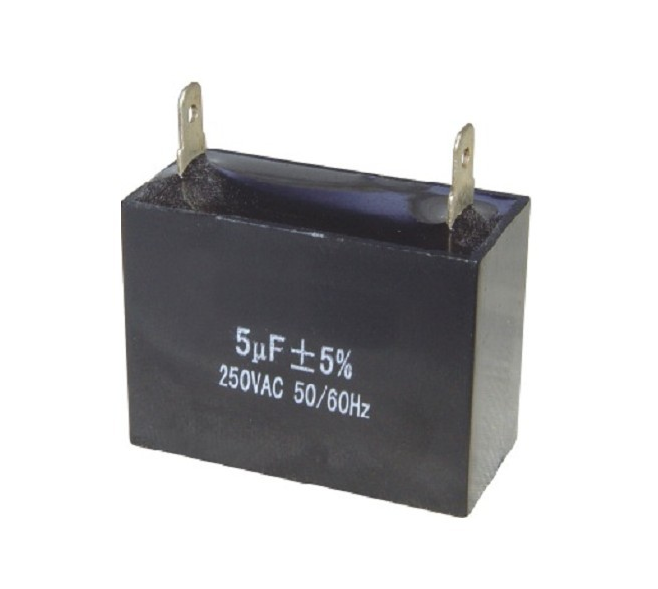

Feature:
Shell: PP.ABS
Terminals: wire, cable, lug, pin
Rated Capacitance:250VAC: 1-25uF
350VAC: 1-25uF
450VAC: 1-25uF
Rated Voltage: 125VAC-500VAC
Capacitance Tolerance: 40/70/21 25/85/21
Test Voltage: T-T: 2.0Un,2S non-breakdown
T-C: 2000VAC, 10S non-breakdown
Insulation Resistance: T-T: Rjc≥3000MΩ:uf
T-C: Rj≥1000MΩ
Loss Tangent Tanδ≤0.003(20℃ 50/60Hz)
Safety Class: P0, P1, P2
|
Microfarad(uf) |
Voltage/Size |
|
|
220-250V |
450V |
|
|
1uf |
31 x 14 x 24mm |
|
|
1.2uf |
31 x 14 x 24mm |
|
|
1.5uf |
31 x 14 x 24mm |
|
|
2uf |
31 x 14 x 24mm |
|
|
3uf |
31 x 14 x 24mm |
|
|
4uf |
31 x 14 x 24mm |
|
|
5uf |
31 x 14 x 24mm |
|
|
6uf |
31 x 14 x 24mm |
|
|
7uf |
31 x 14 x 24mm |
|
|
7.5uf |
31 x 14 x 24mm |
|
|
8uf |
31 x 17 x 27mm |
|
|
9uf |
31 x 17 x 27mm |
|
|
10uf |
31 x 17 x 27mm |
|
|
11uf |
31 x 17 x 27mm |
|
|
12uf |
31 x 17 x 27mm |
|
|
14uf |
31 x 17 x 27mm |
|
|
Microfarad(uf) |
Voltage/Size |
|
|
220-250V |
450V |
|
|
1uf |
31 x 14 x 24mm |
|
|
1.2uf |
31 x 14 x 24mm |
|
|
1.5uf |
31 x 14 x 24mm |
|
|
2uf |
31 x 14 x 24mm |
|
|
3uf |
31 x 14 x 24mm |
|
|
4uf |
31 x 14 x 24mm |
|
|
5uf |
31 x 14 x 24mm |
|
|
6uf |
31 x 14 x 24mm |
|
|
7uf |
31 x 14 x 24mm |
|
|
7.5uf |
31 x 14 x 24mm |
|
|
8uf |
31 x 17 x 27mm |
|
|
9uf |
31 x 17 x 27mm |
|
|
