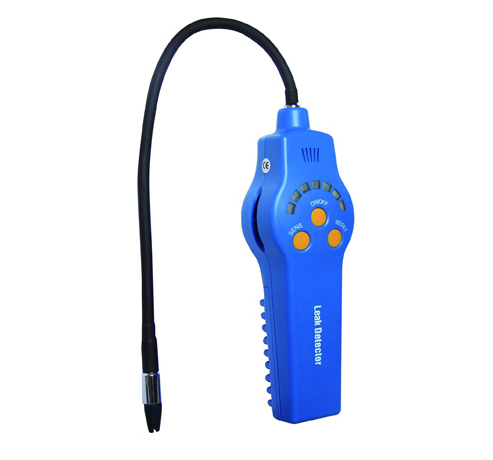

Halogen Leak Detector (NPTC- HLD200)
HCFCS e.g. R22, R123, R124, R502 etc
HFCS e.g. R134a, R404a. R125 etc.
And other mixtures, e.g. AZ-50, HP62, MP-39, etc.
4 Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the homogenate carrier gas.
5 Detect SF-6 in high voltage circuit breaks
6 Detect most gases including Chlorine,
Fluorine and Bromine (halogen gas)
7 Detect cleaning agents used in dry
cleaning applications such as
perchloroethyl.
8 Detect halogen gases in
fire-extinguishing system.
Specification and parameters:
Power supply: 3VDC (2XAA battery)
Max. Sensitivity: R12, R22, R134a
are certified to 3g/yr
Halogen Leak Detector (NPTC- HLD200)
Visual display and single light diode displays the leak degree in large range in the form of "gradually lights the light".
Providing 6 levels of sensitivity to set the real-time cycle adjustment
Easy operation with push button
Battery checked function with tricolor display
Detect all kinds of halogenated refrigerants.
The high effective true mechanical pumping provides positive airflow through sensing tip, which can improve the sensitivity and response speed.

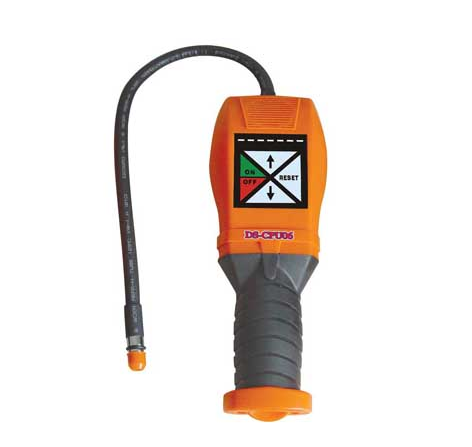

Halogen Leak Detector (NPTC- CPU05)
Technical parameters:
1.Microprocessor controlled circuit with advanced Digital Signal processing.
2.True Mechanical pump provides positive air flow through sensing tip.
3.Tactile keypad controls with one touch reset and adjustable sensitivity.
4.Flexible 14" Stainless Steel Probe.
5.Six Segment visual leak size indicator.
6.High and Low sensitivity levels.
7.Detects all halogenated refrigerants.
8.Requires two C-cell batteries.
9.CE Approved.
