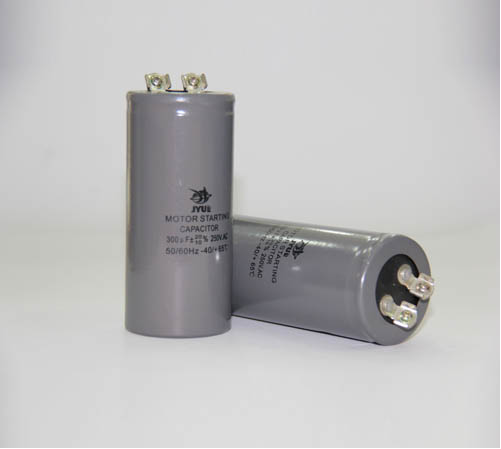

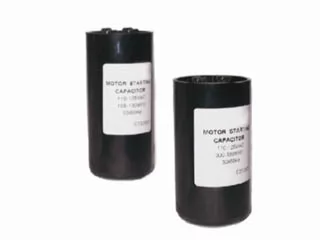

Technique date of motor starting capacitor
Operating temperature:-40~+65°C
Rated voltage:110~330VAC
Rated capacitance:20-1600µf
Tolerance:-10~+30%
Loss tangent:tg δ ≤ 0.15(100Hz)
Testing voltage:T-T 0.85 Un 2S no breakdown
T-C 2500VAC 10S no breakdown
T-T(VAC):Apply 1.2 times rated voltage for 2 seconds,no breakdown
T-C(VAC):2000VAC 10 senconds,no breakdown
Aluminum case and bakelite case are acailable.
Feature:
AC motor capacitor
|
Model |
Microfarad |
Frequency |
Temperature |
Voltage |
Size(Dia. xheight) |
|
NPTC-SC1101 |
21-25uf |
50/60HZ |
-25°C-70°C |
110-125V |
36 ×70mm |
|
NPTC-SC1102 |
25-30uf |
50/60HZ |
-25°C-70°C |
110-125V |
36 ×70mm |
|
NPTC-SC1103 |
30-36uf |
50/60HZ |
-25°C-70°C |
110-125V |
36 ×70mm |
|
NPTC-SC1104 |
36-43uf |
50/60HZ |
-25°C-70°C |
110-125V |
36 ×70mm |
|
NPTC-SC1105 |
53-64uf |
50/60HZ |
-25°C-70°C |
110-125V |
36 ×70mm |
|
NPTC-SC1106 |
72-88uf |
50/60HZ |
-25°C-70°C |
110-125V |
36 ×70mm |
|
NPTC-SC1107 |
88-108uf |
50/60HZ |
-25°C-70°C |
110-125V |
37 x 86mm |
|
NPTC-SC1108 |
124-149uf |
50/60HZ |
-25°C-70°C |
110-125V |
37 x 86mm |
|
NPTC-SC1109 |
130-156uf |
50/60HZ |
-25°C-70°C |
110-125V |
37 x 86mm |
|
NPTC-SC1110 |
145-175uf |
50/60HZ |
-25°C-70°C |
110-125V |
37 x 86mm |
|

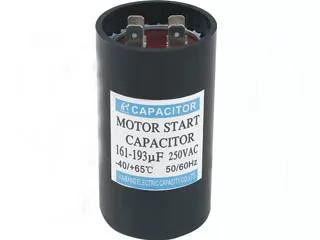

NPTC-SC1111 |
161-193uf |
50/60HZ |
-25°C-70°C |
110-125V |
37 x 86mm |
|
NPTC-SC1112 |
189-227uf |
50/60HZ |
-25°C-70°C |
110-125V |
37 x 86mm |
|
NPTC-SC1113 |
216-259uf |
50/60HZ |
-25°C-70°C |
110-125V |
37 x 86mm |
|
NPTC-SC1114 |
233-280uf |
50/60HZ |
-25°C-70°C |
110-125V |
37 x 86mm |
|
NPTC-SC1115 |
243-292uf |
50/60HZ |
-25°C-70°C |
110-125V |
37 x 86mm |
|
NPTC-SC1116 |
270-324uf |
50/60HZ |
-25°C-70°C |
110-125V |
37 x 86mm |
|
NPTC-SC1117 |
324-388uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 86mm |
|
NPTC-SC1118 |
340-408uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 86mm |
|
NPTC-SC1119 |
378-454uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 86mm |
|
NPTC-SC1120 |
400-480uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 86mm |
|
NPTC-SC1121 |
430-516uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 86mm |
|
NPTC-SC1122 |
460-552uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 86mm |
|
NPTC-SC1123 |
540-648uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 86mm |
|
NPTC-SC1124 |
590-708uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 86mm |
|
NPTC-SC1125 |
645-774uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 86mm |
|
NPTC-SC1126 |
708-850uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 86mm |
|
NPTC-SC1127 |
720-864uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 111mm |
|
NPTC-SC1128 |
829-995uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 111mm |
|
NPTC-SC1129 |
1000-1200uf |
50/60HZ |
-25°C-70°C |
110-125V |
46 x 111mm |
