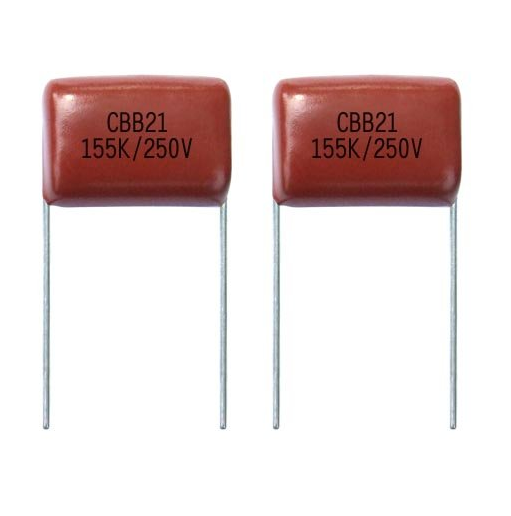

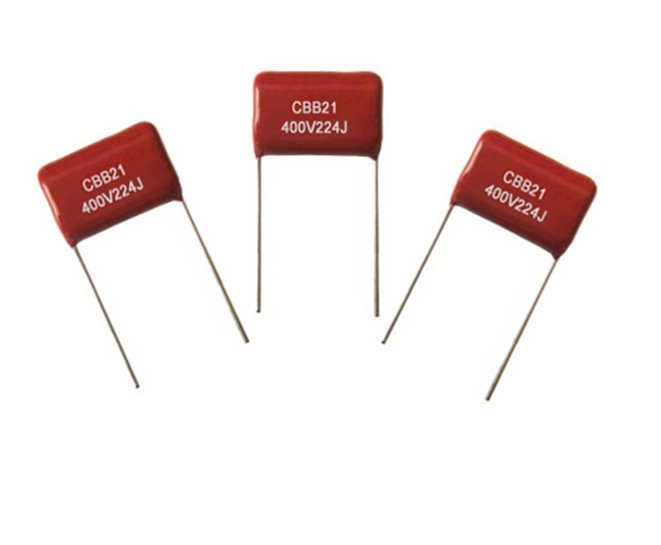

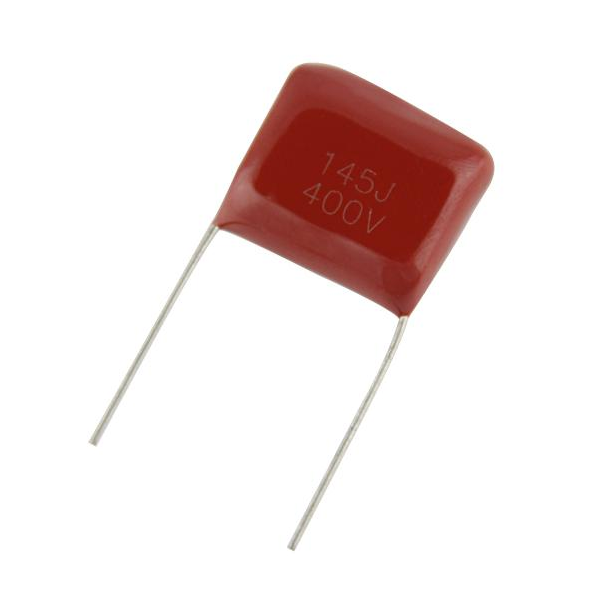

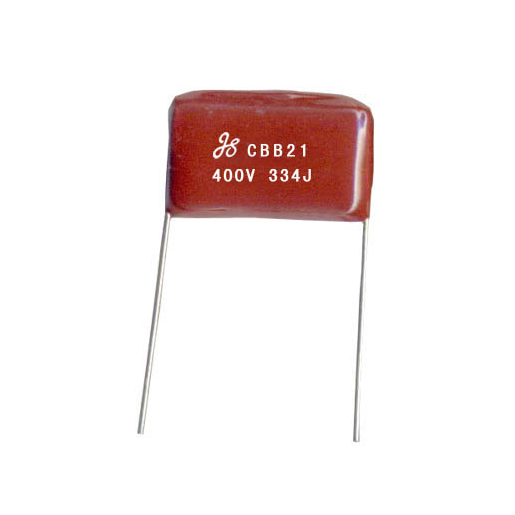

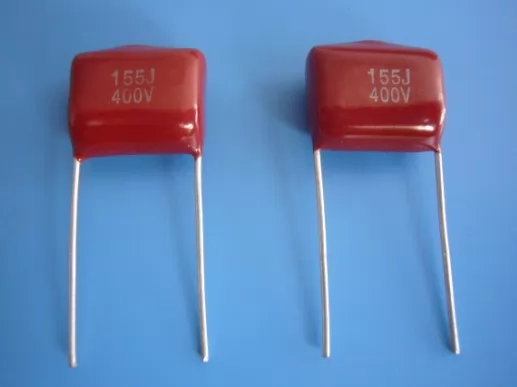

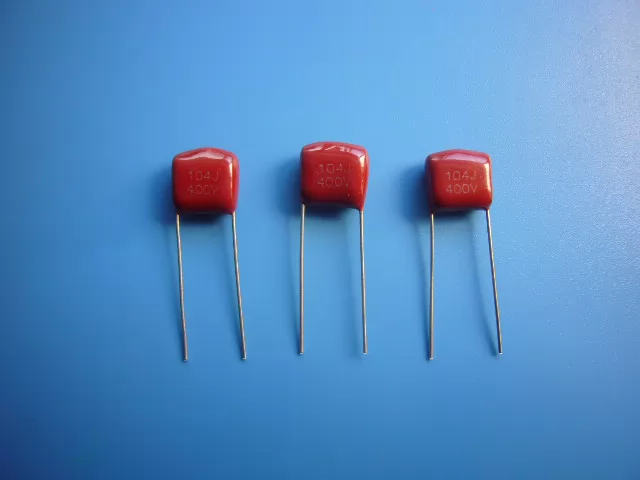

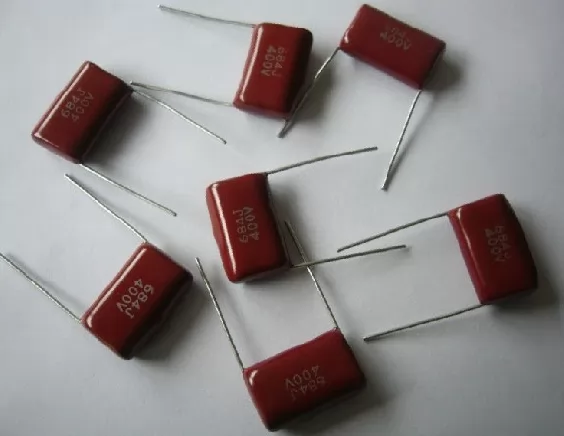

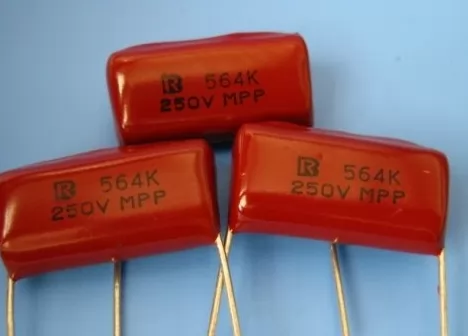

CBB21 Capacitors ,Polypropylene film capacitor CBB21 are widely used in high frequency, DC, AC, pulse circuits., and electronic lighter.
|
Items |
Characteristics |
||
|
Reference Standard |
GB 10190(IEC60384-16) |
||
|
Climatic Category |
40/105/21 |
||
|
Rate Temperature |
85°C |
||
|
Operating Temperature Range |
-40~105°C (+85°Cto +125°C:decreasing factor 1.25% per °C for VR(DC)) |
||
|
Rated Voltage |
100/250V,400V,630V,1000V |
||
|
Capacitance Range |
0.01μF~10μF |
||
|
Capacitance Tolerance |
±5%(J); ±10%(K); ±20%(M)(1kHz) |
||
|
Voltage Proof |
1.6UR(5S) |
||
|
Dissipation Factor |
≤10×10-4 (20°C;1kHz) |
||
|
Insulation Resistance |
UR > 100V |
CR £ 0.33 mF ³ 100000 M CR > 0.33 mF ³ 30000 S |
20°C, 100VDC,1min |
