The name :
Condensers 2
Product Description
1.Material: copper, aluminum, galvanized plate.
2.Aluminum foil: hydrophilic or bare.
3.Fin type: louver or flat fin or corrugated.
4.Copper pipe: diameter 7mm, 8mm or 9.52mm, etc., grooved or smooth tube.
5.Side plate: galvanized plate or aluminum.
6.Size: from 1/4HP to 20HP.
7.Available temperature is above minus 40 centigrade degree.
8.Product length: up to 4 meters.
9.Pitch of holes and pitch of rows: 25×21.65mm and 12.7×19.05mm.
10.Did gas examination under 3.0Mpa air pressure to ensure the tightness.
11.Widely used in refrigeration industry, cold room and other system.
Model :

Features

Feature:

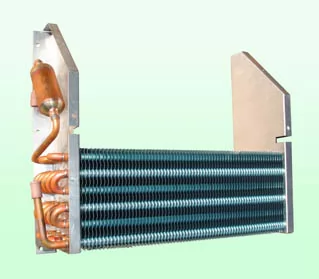

a.Air Conditioner Evaporator
1.Specification: 5.0Rows ×6.0Fins
2.Dimension: L235 ×W185 ×H230mm
3.Fin: hydrophilic aluminum fin for defrosting
4.Shell: 1.0mm thickness aluminum panel.
5.Suitable for R134A, R22, R404A, R407C refrigerant.

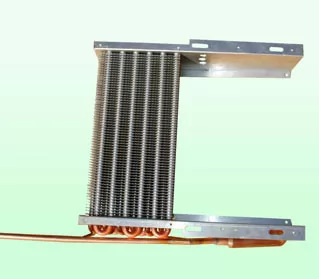

b.Air Conditioner Evaporator
Dimension: L235×W185×H230mm
Type: 6 Rows ×7 Holes
Tube: T2 Dia 9.52mm smooth tube.
Shell: 1.0mm thickness aluminum plate.
Fin: hydrophilic aluminum foil fin anti-frosting.

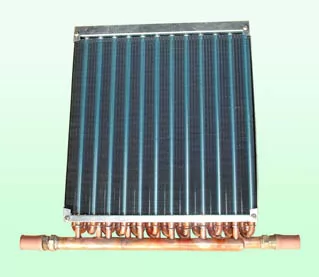

c.Air Conditioner Evaporator
1.Specification:3.0 Rows × 12.0 Fins
2.Fin pitch: 1.8mm
3.Suitable for R134A, R22, R404A, R407C
